Ultrasonic assembly is the method of choice for many applications in the automotive, appliance, medical, textile, packaging, toy and electronics markets, among others. The basic advantages of ultrasonic assembly - fast, strong, clean and reliable welds - are common to all markets. However, each market has specialised needs that they rely on ultrasonic assembly to meet.

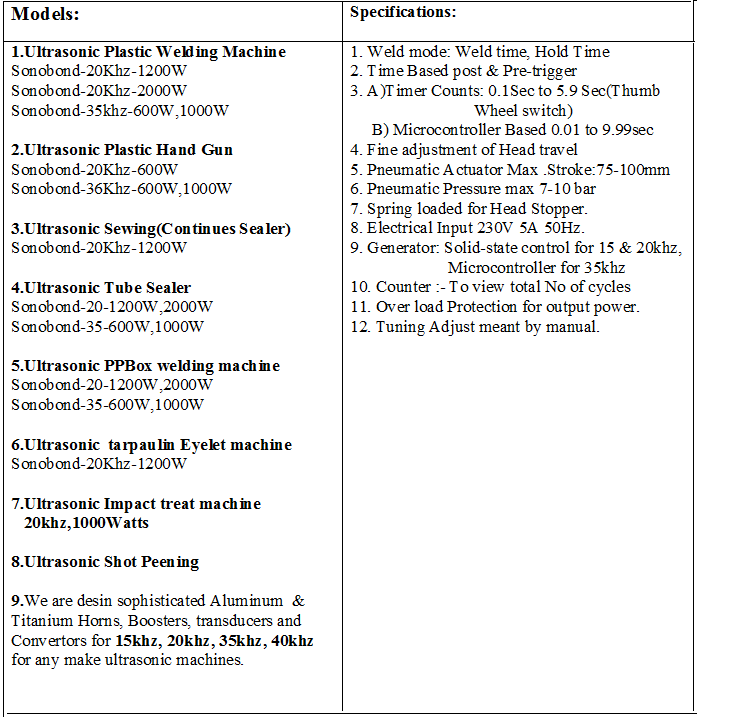

Product Description:We offer Handgun Sonobond-1000 (Spot Welding M/C)
* Operating mode: auto/manual.
* Time mode operation.
* Used for spot welding, Riveting, Flaring.
* Spot welding at 20,35 KHZ-40KHZ.
* Used in cut & seal and continuous welding.
* Pistol type and easy to operate handgun.

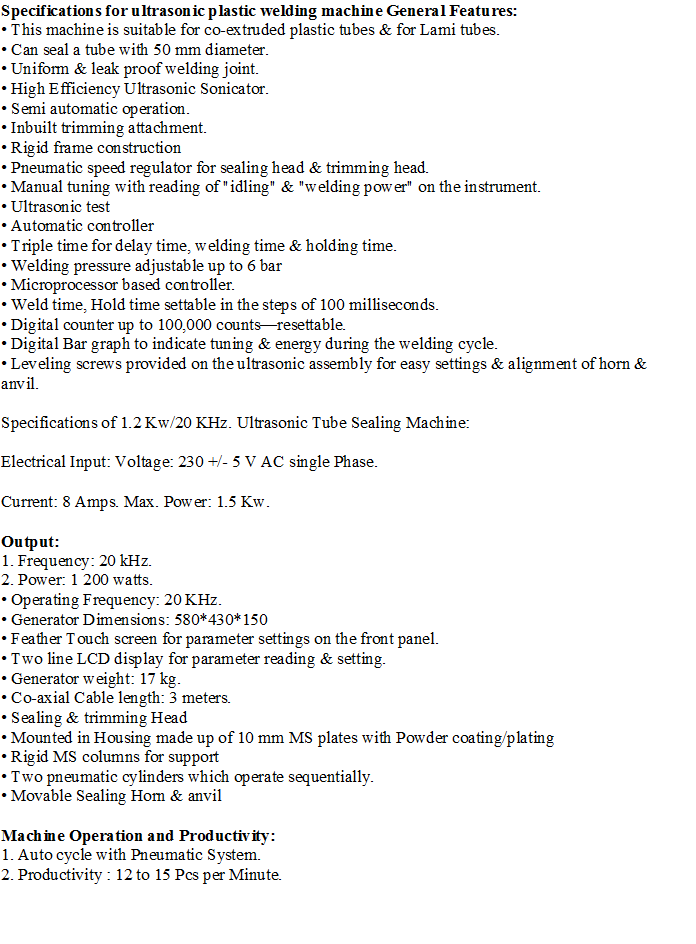

Tube Sealer Machines

Benefits of the process include: energy efficiency, high productivity with low costs and ease of automated assembly line production. The main limitation of the process is that the maximum component length that can be welded by a single horn is approximately 250 mm. This is due to limitations in the power output capability of a single transducer, the inability of hte horns to transmit very high power, and amplitude control difficulties due to the fact that joints of this length are comparable to the wavelength of the ultrasound.

Types of joining
ultrasonic vibratory energy is used in several distinct assembly and finishing technniques are: Welding, Staking, Inserting, Swaging/Forming, Spot Welding, Slitting, Textile/Film Sealing.

Typical Applications
Ultrasonic assembly is the method of choice for many applications in the automotive, appliance, medical, textile, packaging, toy and electronics markets, among others. The basic advantages of ultrasonic assembly - fast, strong, clean and reliable welds - are common to all markets. However, each market has specialised needs that they rely on ultrasonic assembly to meet.

Ultrasonic Horns
